Ton bag packaging machine is an automated equipment specially designed for
packaging bulk materials such as fertilizers, ores, grains, building materials, etc.
It can and precisely load materials into ton bags, and is widely used in various
industrial productions.
Firstly, the materials are conveyed from the storage to the feeding device of the
packaging machine by gravity or mechanical means, and then the weight the
materials is converted into electrical signals by the weighing sensor and compared
with the set weight value to accurately measure the weight. After manual assistance
or automatic bag loading, the opening is tightly clamped by the bag clamping device,
and then the materials are filled into the ton bag according to the characteristics of
the materials by gravity filling or filling. After the filling is completed, the bag opening
is sealed by sewing or heat sealing, and finally the packaged ton bag is conveyed to
the designated position by the device, and the whole packaging process is completed.
1. Automated operation: Integrated PLC control system, simple operation, and reduced
manual intervention.
2. Precise metering: High-precision cells ensure the accuracy of material filling.
3. Fast packaging: Efficient bagging speed greatly improves production efficiency.
4. Strong adaptability: Parameters can be adjusted according different material
characteristics to meet the packaging needs of various products.
5. Reduce labor costs: Reduce the input of human resources and lower labor intensity.
6. Improve packaging: Quick bagging shortens the production cycle.
7.Enhance product quality: Ensure the consistency and sealing of packaging, and extend
the shelf life of products.
1. Chemical industry: used for packaging fertilizers, plastic pellets, etc.
2. Mining: suitable for packaging bulk materials such as ore, coal etc.
3. Food industry: can be used for packaging grain, feed, etc.
4. Building materials: used for packaging cement, sand, etc.
| Model | DCS - 1000 |
| Packing Material | Wooden Boxes |
| Gross Weight | 1640 KG |
| Packing Capacity | 8- 40 bags / h (It depends on the material characteristics and net weight) |
| Packaging error | ≤± 0.2% |
| Weighing Range | 300 - 2000 Kg / bag, customized needs |
| Working air pressure | 0.4 ~ 0.7MPa |
| Application Materials | Bulk bag packing machine is suitable for all kinds of material, such as chemical, food, feed, hardware, building materials etc. |
Company Profile
We have been specializing in the production of Screening and conveying equipment
for 13 years. China's vibrating screen industry top three. And we have done matching
and OEM for many large companies. Including the world's top vibrating screen
manufacturer, Sweco, USA, we have OEM for his China region. And our products are
often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
|
|

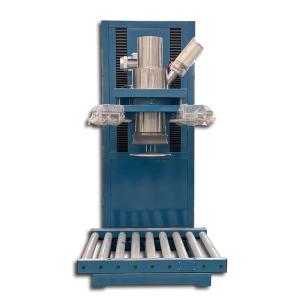

Electronic explosion-proof ton bag packaging machine quantitative weighing ton bag packaging Images
|
